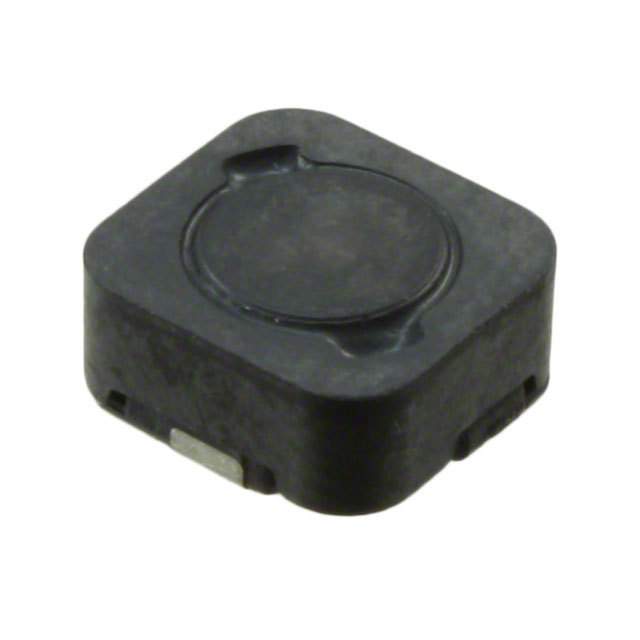

Image is for reference only , See Product Specifications
7687779681
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 7687779681 |
| Description: | FIXED IND 680UH 300MA 4 OHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | WE-PD HV |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 680µH |
| Part Status | Discontinued at Digi-Key |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| DC Resistance (DCR) | 4Ohm Max |
| Current - Saturation | 300mA |
| Current Rating (Amps) | 300mA |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 2.8MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
