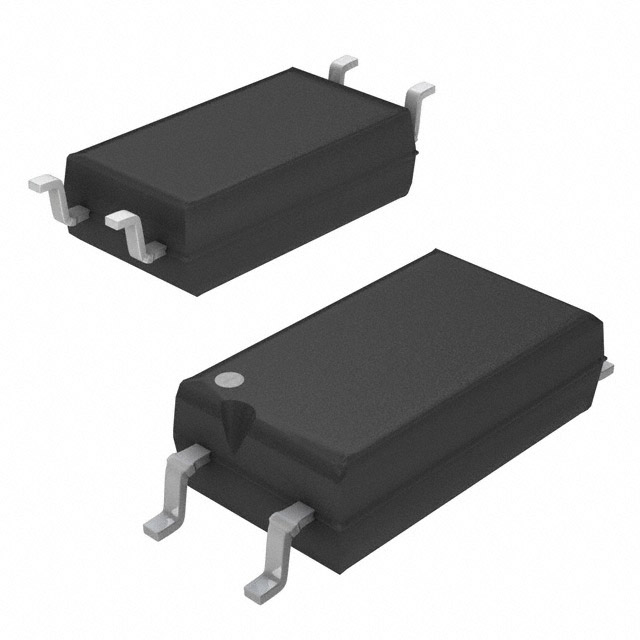

Image is for reference only , See Product Specifications
TCLD1000
| Manufacturers: | Vishay / Semiconductor - Opto Division |
|---|---|
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Data Sheet: | TCLD1000 |
| Description: | OPTOISOLTR 5KV DARLINGTON 4-SOP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Series | - |
| Packaging | Cut Tape (CT) |
| Input Type | DC |
| Output Type | Darlington |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Vce Saturation (Max) | 1V |
| Operating Temperature | -55°C ~ 100°C |
| Rise / Fall Time (Typ) | 300µs, - |
| Voltage - Output (Max) | 35V |
| Supplier Device Package | 4-LSOP (2.54mm) |
| Current - Output / Channel | 80mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 600% @ 1mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Turn On / Turn Off Time (Typ) | -, 250µs |
| Current - DC Forward (If) (Max) | 60mA |
In Stock 1031 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.76 | $0.74 | $0.73 |
