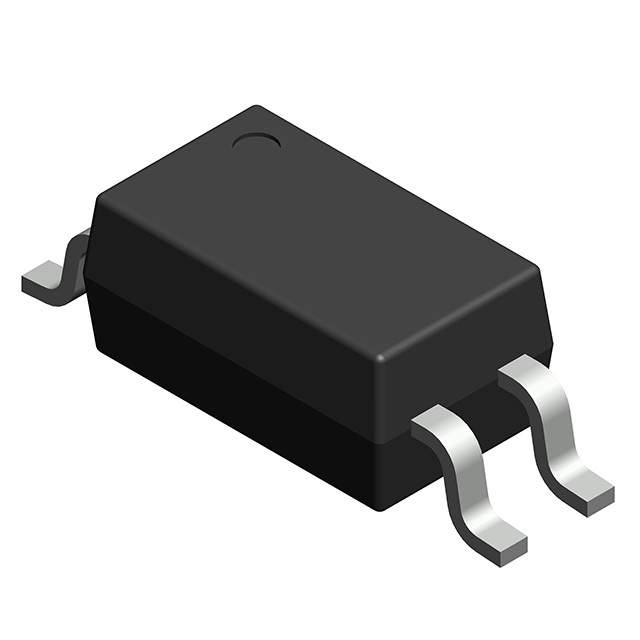

Image is for reference only , See Product Specifications
TCLT1100
| Manufacturers: | Vishay / Semiconductor - Opto Division |
|---|---|
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Data Sheet: | TCLT1100 |
| Description: | OPTOISO 5KV TRANS W/BASE 6SOP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Series | - |
| Packaging | Digi-Reel® |
| Input Type | DC |
| Output Type | Transistor with Base |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width), 5 Leads |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Voltage - Output (Max) | 80V |
| Supplier Device Package | 6-SOP, 5 Pin |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Current - DC Forward (If) (Max) | 60mA |
In Stock 2710 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
