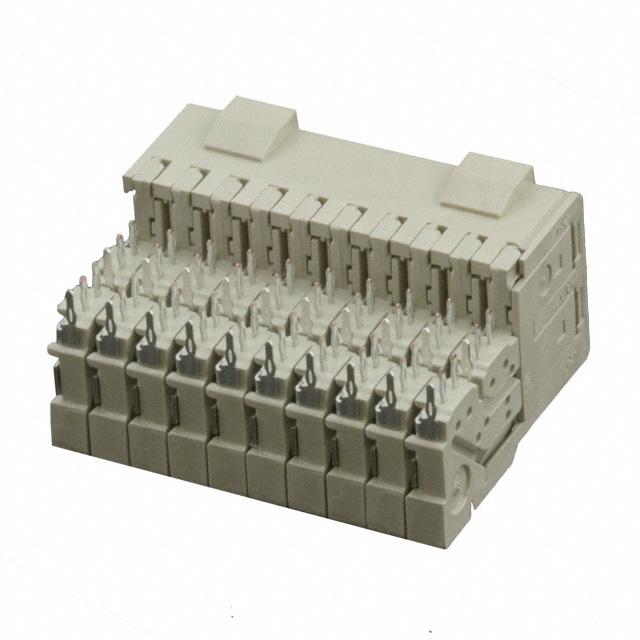

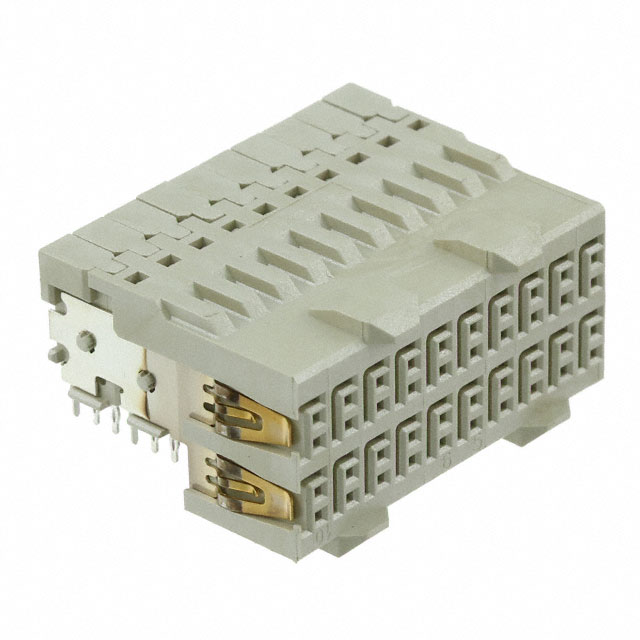

Image is for reference only , See Product Specifications
6469001-1
| Manufacturers: | TE Connectivity AMP Connectors |
|---|---|
| Product Category: | Backplane Connectors - Specialized |
| Data Sheet: | 6469001-1 |
| Description: | CONN RCPT HI SPEED 120P EDGE MT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Product Category | Backplane Connectors - Specialized |
| Color | - |
| Pitch | 0.098" (2.50mm) |
| Series | Z-PACK HM-Zd |
| Features | - |
| Packaging | Tube |
| Part Status | Active |
| Termination | Press-Fit |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Number of Rows | 8 |
| Voltage Rating | 250V |
| Connector Style | High Speed |
| Connector Usage | Daughtercard |
| Number of Columns | 10 |
| Number of Positions | 120 |
| Current Rating (Amps) | 0.700A |
| Operating Temperature | -65°C ~ 105°C |
| Contact Layout, Typical | 80 Single Signal, 40 Ground |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
In Stock 1469 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $19.23 | $18.85 | $18.47 |
