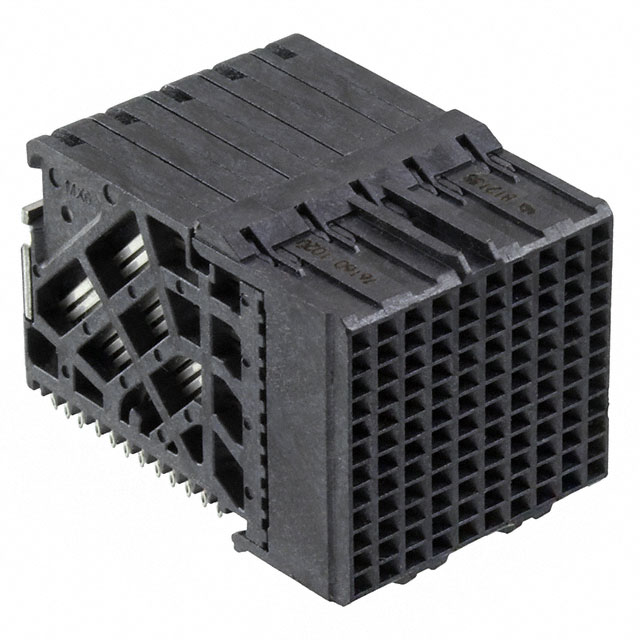

Manufacturers: | TE Connectivity AMP Connectors |
---|---|
Product Category: | Backplane Connectors - Specialized |
Data Sheet: | 1469028-1 |
Description: | CONN RCPT HIGH SPEED 60P EDGE MT |
RoHS status: | RoHS Compliant |
Attribute | Attribute Value |
---|---|
Manufacturer | TE Connectivity AMP Connectors |
Product Category | Backplane Connectors - Specialized |
Color | - |
Pitch | 0.098" (2.50mm) |
Series | Z-PACK HM-Zd |
Features | - |
Packaging | Tube |
Part Status | Active |
Termination | Press-Fit |
Mounting Type | Board Edge, Through Hole, Right Angle |
Connector Type | Receptacle, Female Sockets |
Contact Finish | Gold |
Number of Rows | 4 |
Voltage Rating | 250V |
Connector Style | High Speed |
Connector Usage | Daughtercard |
Number of Columns | 10 |
Number of Positions | 60 |
Current Rating (Amps) | 0.700A |
Operating Temperature | -65°C ~ 105°C |
Contact Layout, Typical | 40 Signal, 20 Ground |
Contact Finish Thickness | 30.0µin (0.76µm) |
Number of Positions Loaded | All |
Material Flammability Rating | UL94 V-0 |
Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
---|---|---|---|
$16.87 | $16.53 | $16.20 |
