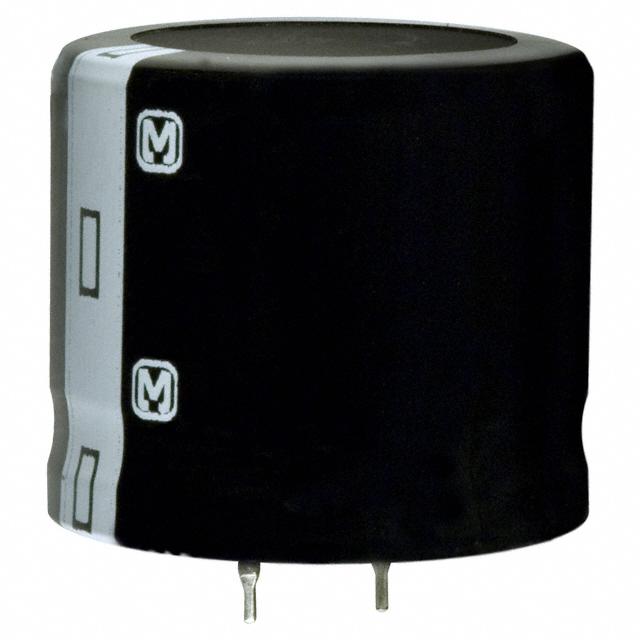

Image is for reference only , See Product Specifications
EET-UQ2V331BA
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EET-UQ2V331BA |
| Description: | CAP ALUM 330UF 20% 350V SNAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | TS-UQ |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 330µF |
| Part Status | Obsolete |
| Applications | General Purpose |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 350V |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Operating Temperature | -25°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 1.88A @ 120Hz |
| Ripple Current @ High Frequency | 2.632A @ 10kHz |
| ESR (Equivalent Series Resistance) | 603mOhm @ 120Hz |
In Stock 106 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.41 | $4.32 | $4.24 |
Request Quote
