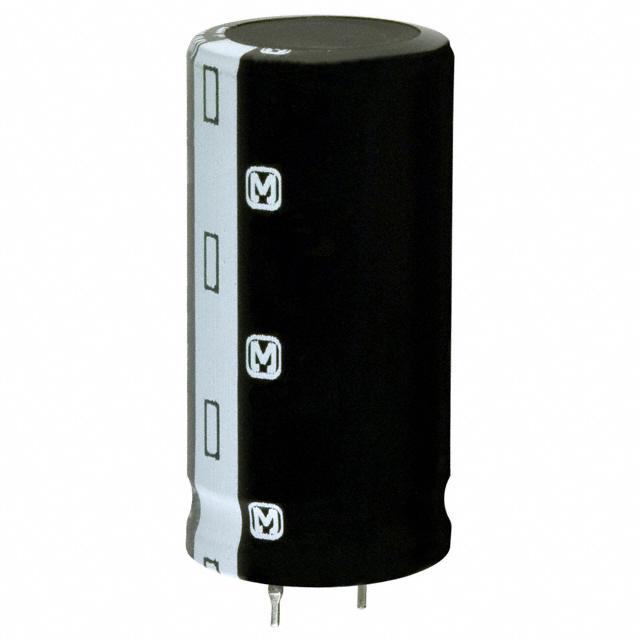

Image is for reference only , See Product Specifications
ECO-S1HA562EA
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | ECO-S1HA562EA |
| Description: | CAP ALUM 5600UF 20% 50V SNAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | TS-HA |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 5600µF |
| Part Status | Obsolete |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 50V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 2.8A @ 120Hz |
| Ripple Current @ High Frequency | 3.22A @ 100kHz |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
In Stock 101 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.32 | $4.23 | $4.15 |
