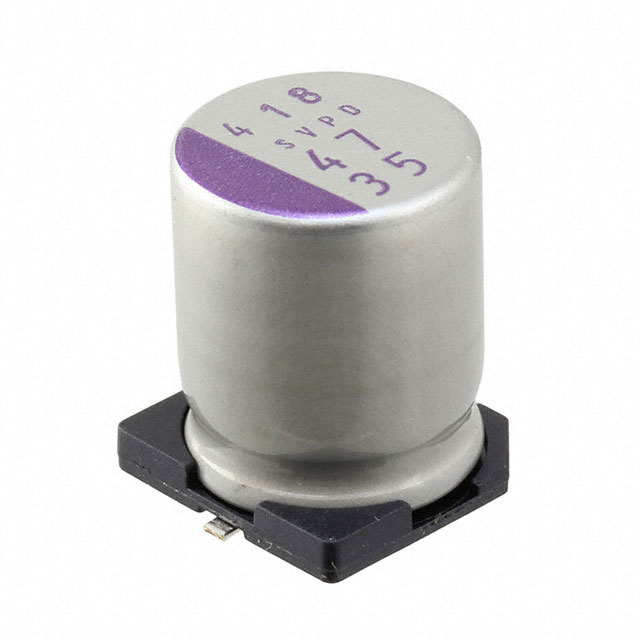

Image is for reference only , See Product Specifications
EEH-ZK1V331V
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | EEH-ZK1V331V |
| Description: | CAP ALUM POLY 330UF 20% 35V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Hybrid |
| Series | ZK |
| Ratings | AEC-Q200 |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 330µF |
| Part Status | Active |
| Applications | Automotive, High Temperature Reflow |
| Lead Spacing | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 35V |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Ripple Current @ Low Frequency | 420mA @ 100Hz |
| Ripple Current @ High Frequency | 2.8A @ 100kHz |
| ESR (Equivalent Series Resistance) | 20mOhm |
In Stock 23833 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
