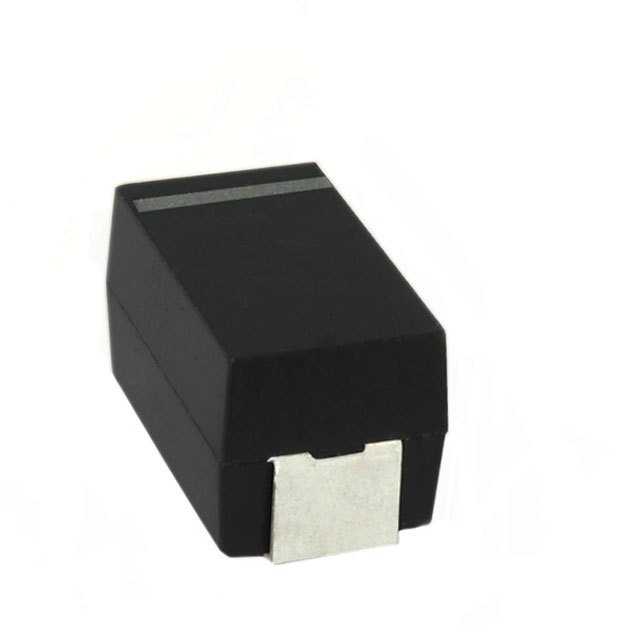

Image is for reference only , See Product Specifications
35SVPD47M
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | 35SVPD47M |
| Description: | CAP ALUM POLY 47UF 20% 35V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Polymer |
| Series | OS-CON™, SVPD |
| Ratings | - |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 47µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 35V |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Ripple Current @ Low Frequency | 57.5mA @ 120Hz |
| Ripple Current @ High Frequency | 1.15A @ 100kHz |
| ESR (Equivalent Series Resistance) | 30mOhm |
In Stock 7721 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
