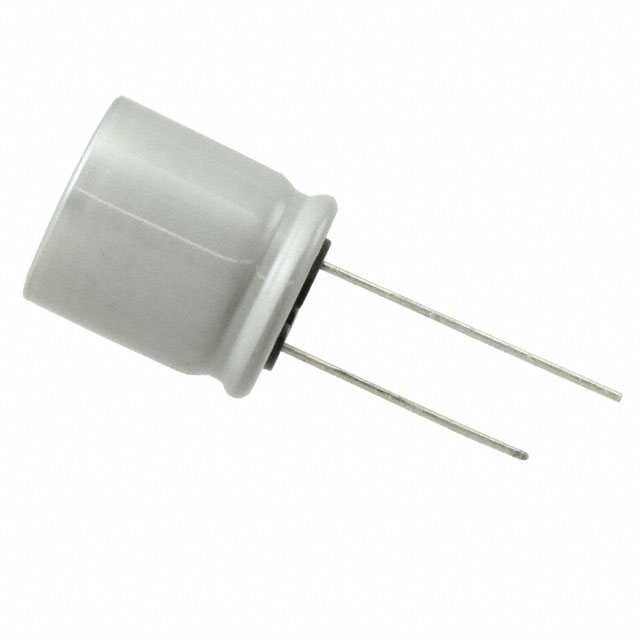

Image is for reference only , See Product Specifications
UBT1K471MHD1TN
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UBT1K471MHD1TN |
| Description: | CAP ALUM 470UF 20% 80V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UBT |
| Ratings | - |
| Impedance | 110 mOhms |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 470µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 80V |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 750mA @ 120Hz |
| Ripple Current @ High Frequency | 1.5A @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 1250 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $3.12 | $3.06 | $3.00 |
