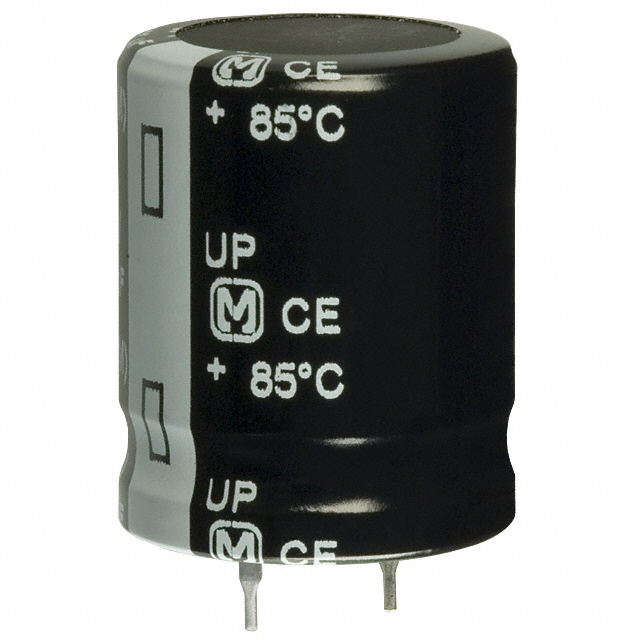

Image is for reference only , See Product Specifications
ECO-S2DP122DA
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | ECO-S2DP122DA |
| Description: | CAP ALUM 1200UF 20% 200V SNAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | TS-UP |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1200µF |
| Part Status | Obsolete |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 200V |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 3.5A @ 120Hz |
| Ripple Current @ High Frequency | 4.9A @ 100kHz |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
In Stock 8094 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.82 | $2.76 | $2.71 |
