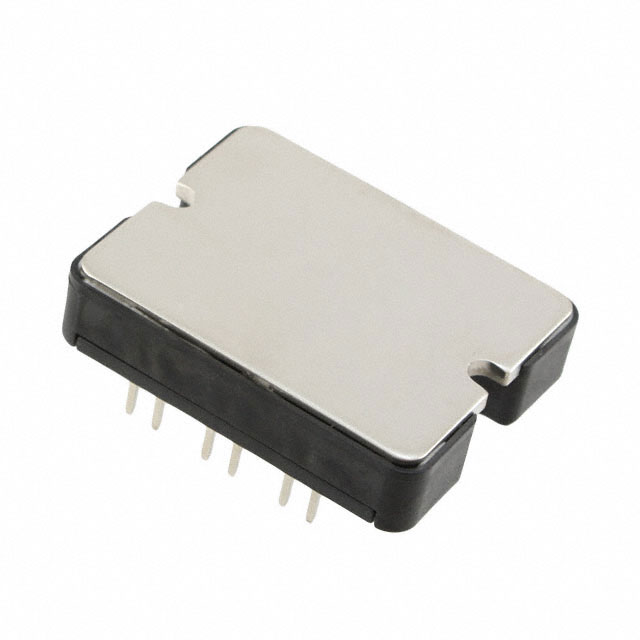

Image is for reference only , See Product Specifications
APTGT150A60T1G
| Manufacturers: | Microsemi Corporation |
|---|---|
| Product Category: | Transistors - IGBTs - Modules |
| Data Sheet: | APTGT150A60T1G |
| Description: | IGBT PHASE LEG 600V 225A SP1 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microsemi Corporation |
| Product Category | Transistors - IGBTs - Modules |
| Input | Standard |
| Series | - |
| IGBT Type | Trench Field Stop |
| Part Status | Active |
| Power - Max | 480W |
| Configuration | Half Bridge |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | SP1 |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | SP1 |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 150A |
| Current - Collector (Ic) (Max) | 225A |
| Input Capacitance (Cies) @ Vce | 9.2nF @ 25V |
| Current - Collector Cutoff (Max) | 250µA |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $54.60 | $53.51 | $52.44 |
