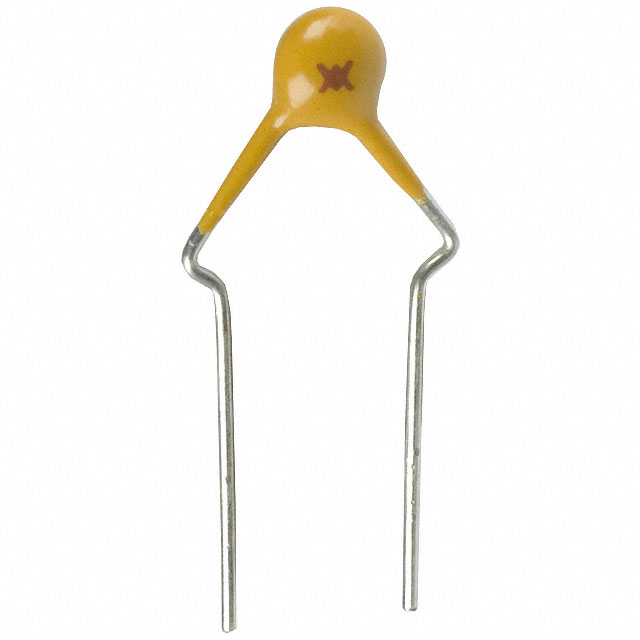

Image is for reference only , See Product Specifications
RHEF750-2
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | RHEF750-2 |
| Description: | PTC RESET FUSE 16V 7.5A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, RHEF |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Lead Spacing | 0.199" (5.05mm) |
| Time to Trip | 7s |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.551" L x 0.118" W (14.00mm x 3.00mm) |
| Current - Trip (It) | 13.1A |
| Height - Seated (Max) | 0.925" (23.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 7.5A |
| Resistance - Initial (Ri) (Min) | 9.4 mOhms |
| Resistance - Post Trip (R1) (Max) | 22 mOhms |
In Stock 5598 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.97 | $0.95 | $0.93 |
