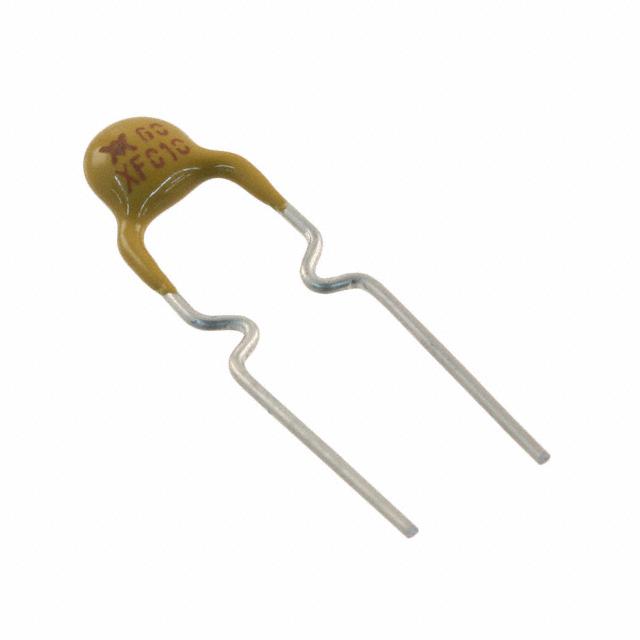

Image is for reference only , See Product Specifications
RXEF050S
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | RXEF050S |
| Description: | PTC RESET FUSE 72V 500MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, RXEF |
| Ratings | - |
| Approvals | CQC, CSA, TUV, UL |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.199" (5.05mm) |
| Time to Trip | 4s |
| Current - Max | 40A |
| Mounting Type | Through Hole |
| Voltage - Max | 72V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) |
| Current - Trip (It) | 1A |
| Height - Seated (Max) | 0.539" (13.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 500mA |
| Resistance - Initial (Ri) (Min) | 500 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.17 Ohms |
In Stock 3994 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.39 | $0.38 | $0.37 |
