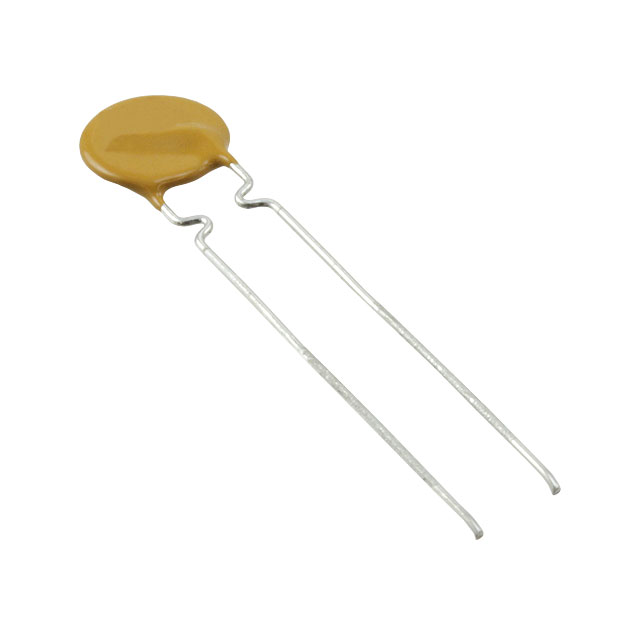

Image is for reference only , See Product Specifications
RHEF200-2
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | RHEF200-2 |
| Description: | PTC RESET FUSE 16V 2A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, RHEF |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Lead Spacing | 0.199" (5.05mm) |
| Time to Trip | 4.3s |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) |
| Current - Trip (It) | 3.8A |
| Height - Seated (Max) | 0.567" (14.40mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 2A |
| Resistance - Initial (Ri) (Min) | 45 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms |
In Stock 3014 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.70 | $0.69 | $0.67 |
