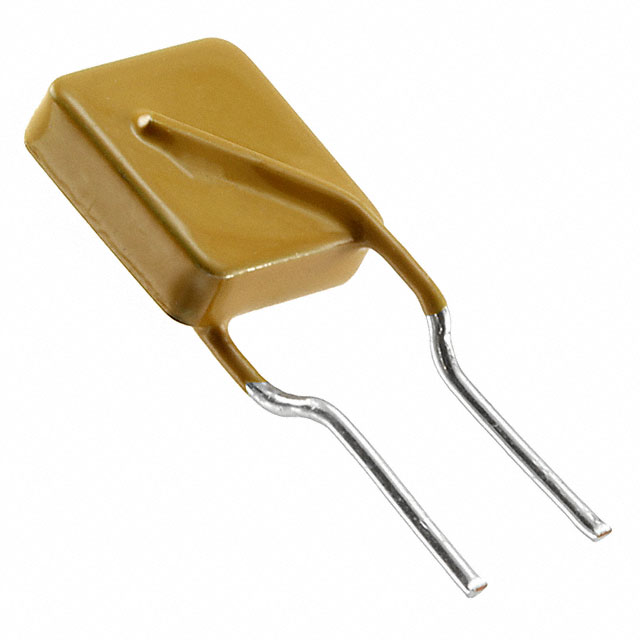

Image is for reference only , See Product Specifications
LVR055S-1
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | LVR055S-1 |
| Description: | PTC RESET FUSE 240V 550MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, LVR |
| Ratings | - |
| Approvals | CQC, CSA, TUV, UL |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.200" (5.08mm) |
| Time to Trip | 26s |
| Current - Max | 7A |
| Mounting Type | Through Hole |
| Voltage - Max | 240V (265V Int) |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.551" L x 0.161" W (14.00mm x 4.10mm) |
| Current - Trip (It) | 1.25A |
| Height - Seated (Max) | 0.854" (21.70mm) |
| Operating Temperature | -20°C ~ 85°C |
| Current - Hold (Ih) (Max) | 550mA |
| Resistance - Initial (Ri) (Min) | 450 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.45 Ohms |
In Stock 1415 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.18 | $1.16 | $1.13 |
