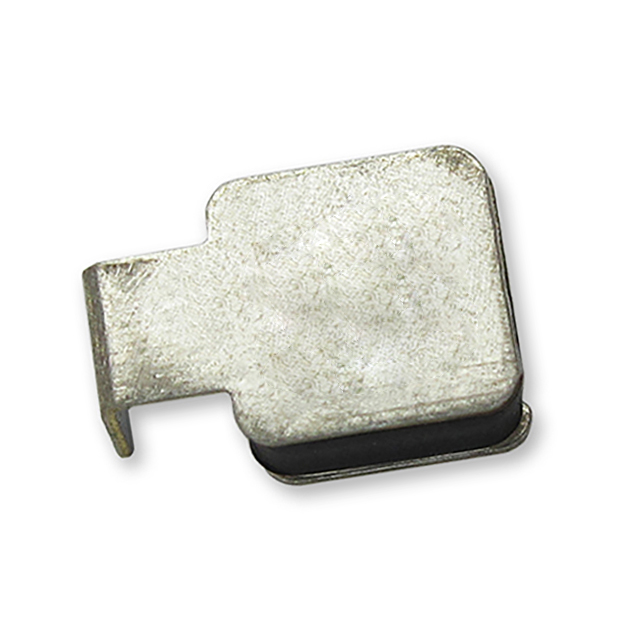

Image is for reference only , See Product Specifications
TRF600-150-R2-B-0.5
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | TRF600-150-R2-B-0.5 |
| Description: | PTC RESET FUSE 250V 150MA RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolySwitch®, TRF600 |
| Ratings | - |
| Approvals | CSA, TUV, UL |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.197" (5.00mm) |
| Time to Trip | 3s |
| Current - Max | 3A |
| Mounting Type | Through Hole |
| Voltage - Max | 250V (600V Int) |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.354" L x 0.181" W (9.00mm x 4.60mm) |
| Current - Trip (It) | 300mA |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 150mA |
| Resistance - Initial (Ri) (Min) | 7 Ohms |
| Resistance - Post Trip (R1) (Max) | 17 Ohms |
In Stock 1818 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.11 | $1.09 | $1.07 |
