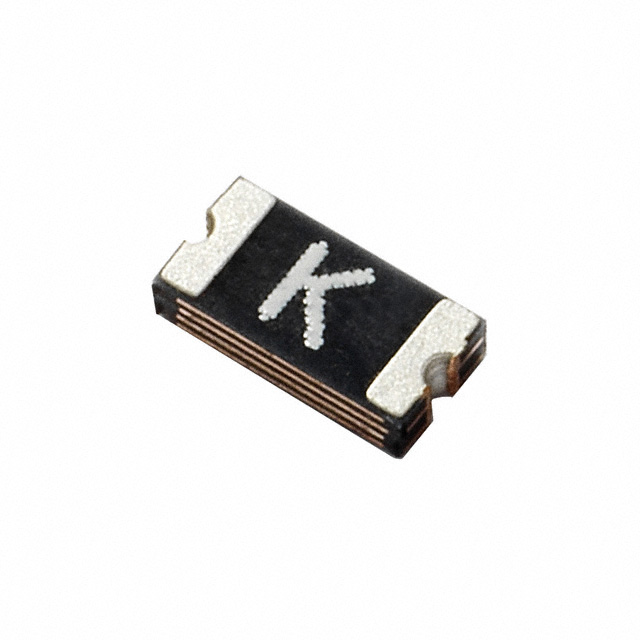

Image is for reference only , See Product Specifications
1206L380SLTHYR
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | 1206L380SLTHYR |
| Description: | PTC RESET FUSE 6V 2.82A 1206 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | POLY-FUSE®, LoRho |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Lead Spacing | - |
| Time to Trip | 5s |
| Current - Max | 50A |
| Mounting Type | Surface Mount |
| Voltage - Max | 6V |
| Package / Case | 1206 (3216 Metric), Concave |
| Thickness (Max) | 0.028" (0.70mm) |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Current - Trip (It) | 8A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 2.82A |
| Resistance - Initial (Ri) (Min) | 2 mOhms |
| Resistance - Post Trip (R1) (Max) | 14 mOhms |
In Stock 3197 pcs
