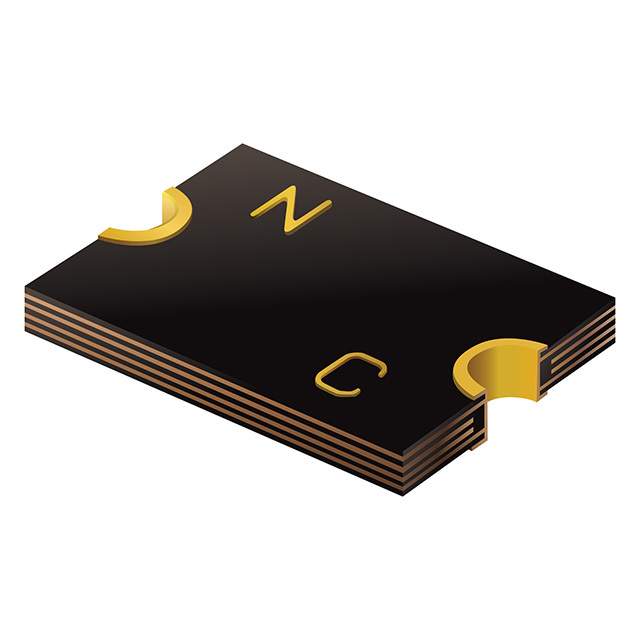

Image is for reference only , See Product Specifications
0805L110SLYR
| Manufacturers: | Littelfuse Inc. |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | 0805L110SLYR |
| Description: | PTC RESET FUSE 6V 1.1A 0805 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | POLY-FUSE®, LoRho |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Lead Spacing | - |
| Time to Trip | 300ms |
| Current - Max | 50A |
| Mounting Type | Surface Mount |
| Voltage - Max | 6V |
| Package / Case | 0805 (2012 Metric), Concave |
| Thickness (Max) | 0.030" (0.75mm) |
| Size / Dimension | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Current - Trip (It) | 1.8A |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 1.1A |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 130 mOhms |
In Stock 4485 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
