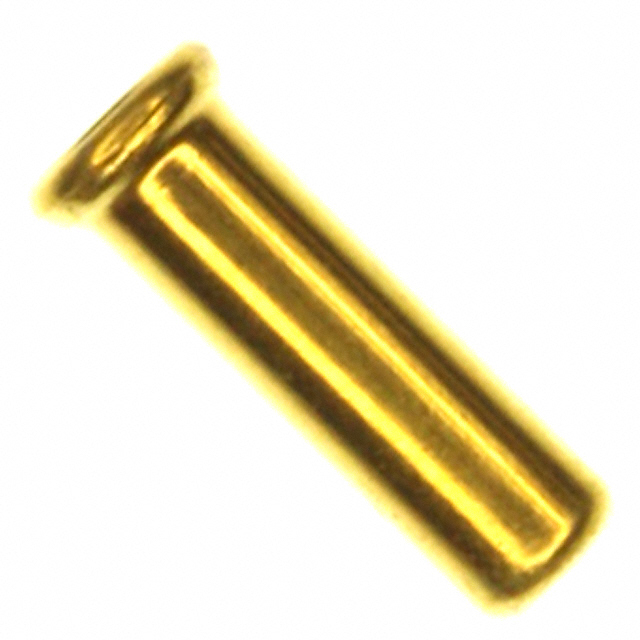

Image is for reference only , See Product Specifications
1416
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | 1416 |
| Description: | CONN PIN RCPT .022-.034 KNURL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Press-Fit, Knurled |
| Socket Depth | 0.170" (4.32mm) |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | - |
| Flange Diameter | 0.086" (2.18mm) |
| Insertion Force | - |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.200" (5.08mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) |
| Operating Temperature | - |
| Mounting Hole Diameter | 0.067" (1.70mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 10.0µin (0.25µm) |
In Stock 2339 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.77 | $0.75 | $0.74 |
