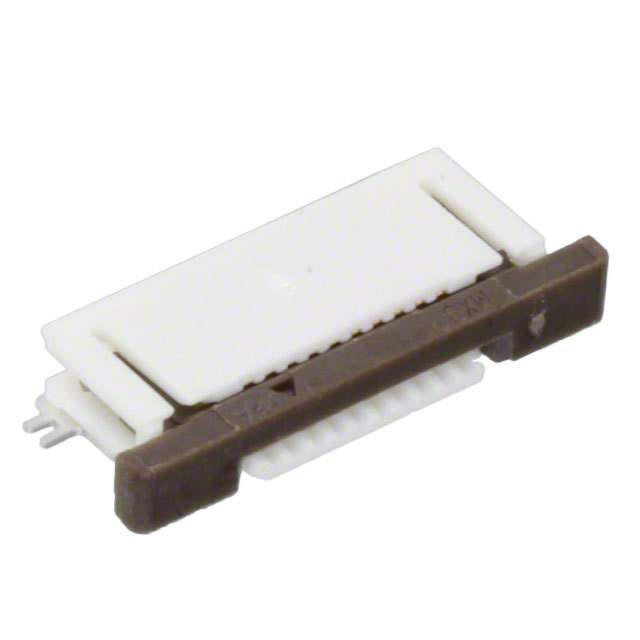

Image is for reference only , See Product Specifications
FA1010SA1-R8000
| Manufacturers: | JAE Electronics |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | FA1010SA1-R8000 |
| Description: | 10 PIN, 0.5MM PITCH, 0.9MM HEIGH |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | JAE Electronics |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.020" (0.50mm) |
| Series | FA10 |
| Features | Low Insertion Force (LIF) |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tabbed |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | - |
| Contact Material | Copper Alloy |
| Actuator Material | Plastic |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.88mm) |
| Dielectric Material | Plastic |
| Number of Positions | 10 |
| Current Rating (Amps) | 0.5A per Contact |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
In Stock 14018 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
