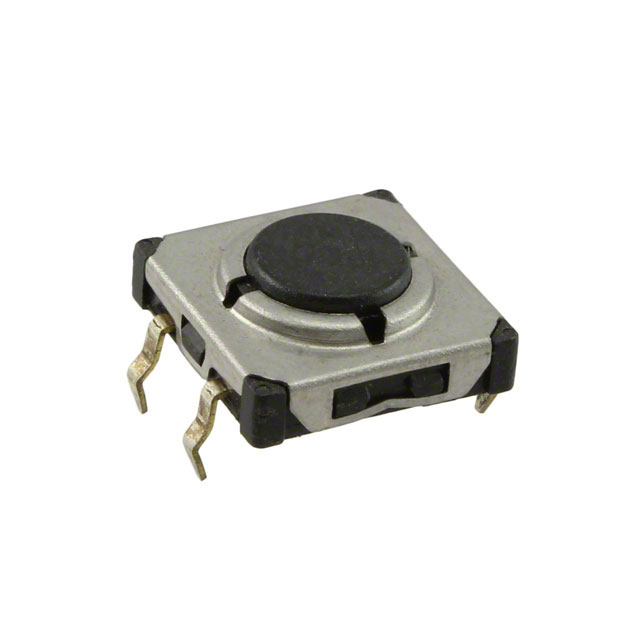

Image is for reference only , See Product Specifications
TL6700NF160QJ
| Manufacturers: | E-Switch |
|---|---|
| Product Category: | Tactile Switches |
| Data Sheet: | TL6700NF160QJ |
| Description: | SWITCH TACTILE SPST-NO 0.05A 12V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | E-Switch |
| Product Category | Tactile Switches |
| Series | TL6700 |
| Circuit | SPST-NO |
| Outline | 6.90mm x 6.20mm |
| Features | Process Sealed |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Flush |
| Mounting Type | Surface Mount |
| Switch Travel | 0.35mm |
| Mechanical Life | 500,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Silicon Rubber |
| Termination Style | J Lead |
| Ingress Protection | - |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -20°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 2.60mm |
In Stock 1774 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
