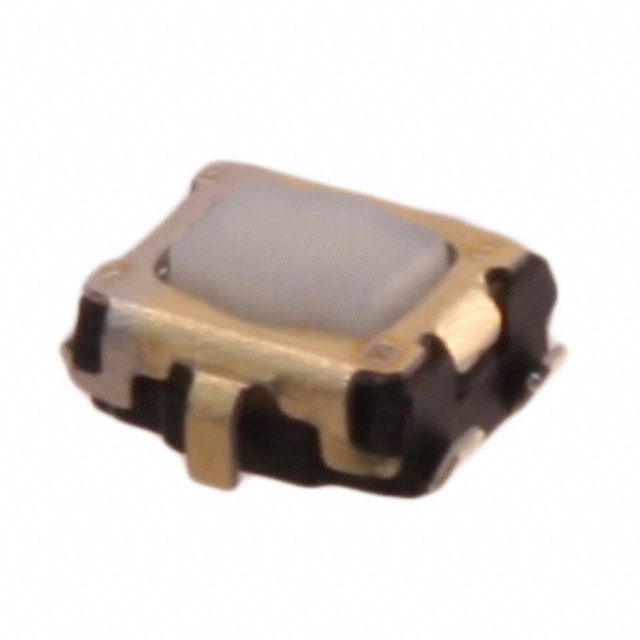

Image is for reference only , See Product Specifications
1571220-1
| Manufacturers: | TE Connectivity ALCOSWITCH Switches |
|---|---|
| Product Category: | Tactile Switches |
| Data Sheet: | 1571220-1 |
| Description: | SWITCH TACTILE SPST-NO 0.05A 24V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Product Category | Tactile Switches |
| Series | - |
| Circuit | SPST-NO |
| Outline | 12.00mm x 12.00mm |
| Features | Sealed - Fully |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 0.35mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Thermoplastic |
| Termination Style | PC Pin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -35°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 4.30mm |
In Stock 1172 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.98 | $0.96 | $0.94 |
