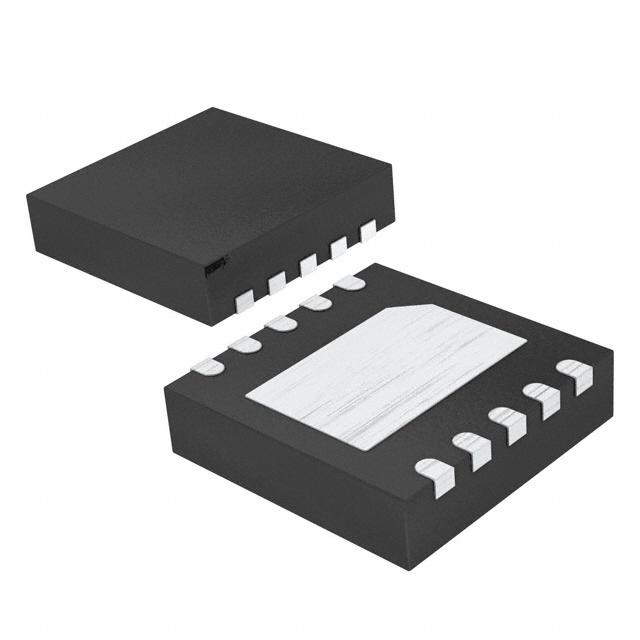

Image is for reference only , See Product Specifications
DGD05062FN-7
| Manufacturers: | Diodes Incorporated |
|---|---|
| Product Category: | PMIC - Gate Drivers |
| Data Sheet: | DGD05062FN-7 |
| Description: | IC GATE DRVR HALFBRDG DFN3030-10 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | PMIC - Gate Drivers |
| Series | - |
| Gate Type | N-Channel MOSFET |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Synchronous |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Voltage - Supply | 8V ~ 14V |
| Number of Drivers | 2 |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Rise / Fall Time (Typ) | 17ns, 12ns |
| Supplier Device Package | W-DFN3030-10 |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| High Side Voltage - Max (Bootstrap) | 50V |
| Current - Peak Output (Source, Sink) | 1.5A, 2.5A |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.39 | $0.38 | $0.37 |
