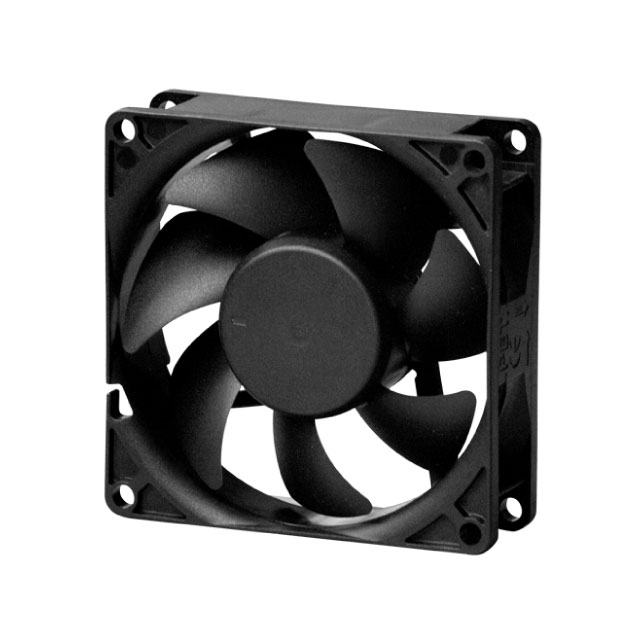

Image is for reference only , See Product Specifications
AFB0424HB
| Manufacturers: | Delta Electronics |
|---|---|
| Product Category: | DC Brushless Fans (BLDC) |
| Data Sheet: | AFB0424HB |
| Description: | 40X40X15MM 24V DC FAN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Delta Electronics |
| Product Category | DC Brushless Fans (BLDC) |
| RPM | 7000 RPM |
| Noise | 28.5 dB(A) |
| Width | 15.00mm |
| Series | AFB |
| Weight | 0.056 lb (25.4 g) |
| Air Flow | 9.5 CFM (0.266m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Approvals | CE, CSA, UR, VDE |
| Part Status | Active |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 1.92W |
| Voltage Range | 14 ~ 27.6VDC |
| Static Pressure | 0.272 in H2O (67.7 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 40mm L x 40mm H |
| Ingress Protection | - |
| Current Rating (Amps) | 0.080A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
In Stock 381 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $13.06 | $12.80 | $12.54 |
