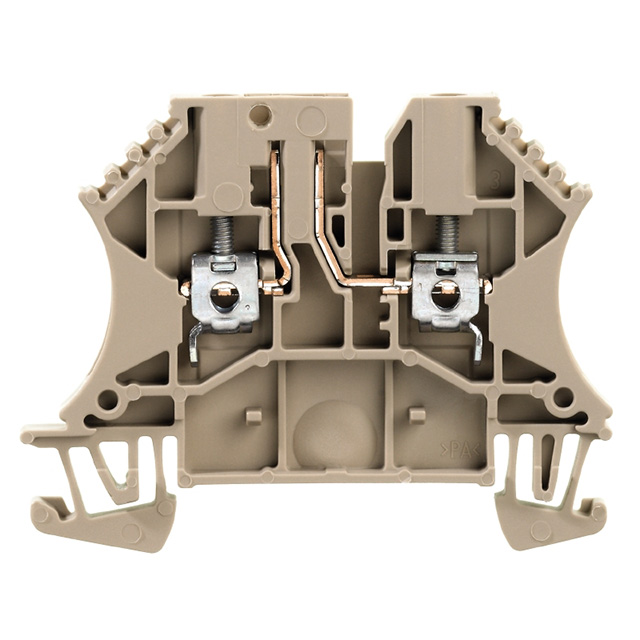

Image is for reference only , See Product Specifications
CDLG4
| Manufacturers: | Altech Corporation |
|---|---|
| Product Category: | Terminal Blocks - Din Rail, Channel |
| Data Sheet: | CDLG4 |
| Description: | DIN TERM BLOCK DBL LEVEL 24-10 A |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Altech Corporation |
| Product Category | Terminal Blocks - Din Rail, Channel |
| Type | Feed Through |
| Color | Green, Yellow |
| Series | - |
| Features | - |
| Fuse Type | - |
| Part Status | Active |
| Current - UL | 32A |
| Voltage - UL | 150V |
| Current - IEC | 32A |
| Voltage - IEC | 500V |
| Disconnect Type | - |
| Number of Levels | 2; 1 Grounded |
| Stripping Length | 8mm |
| Terminal - Width | 6.0mm |
| Termination Style | Screw |
| Number of Positions | 4 |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
| Material Flammability Rating | - |
In Stock 30 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.81 | $6.67 | $6.54 |
