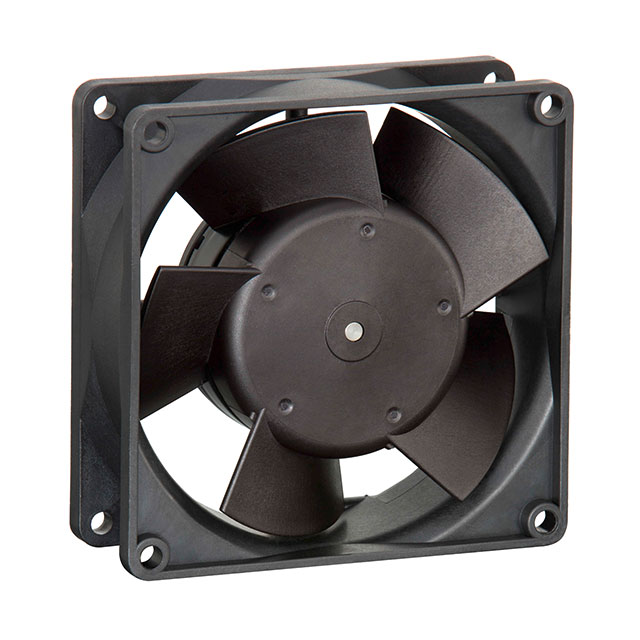

Image is for reference only , See Product Specifications
3412NGL
| Manufacturers: | ebm-papst Inc. |
|---|---|
| Product Category: | DC Brushless Fans (BLDC) |
| Data Sheet: | 3412NGL |
| Description: | FAN AXIAL 92X25.4MM 12VDC WIRE |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ebm-papst Inc. |
| Product Category | DC Brushless Fans (BLDC) |
| RPM | 1950 RPM |
| Noise | 23.0 dB(A) |
| Width | 25.40mm |
| Series | 3400N |
| Weight | 0.31 lb (140.61 g) |
| Air Flow | 36.0 CFM (1.01m³/min) |
| Fan Type | Tubeaxial |
| Features | - |
| Approvals | - |
| Part Status | Obsolete |
| Termination | 2 Wire Leads |
| Bearing Type | Sintec |
| Power (Watts) | 1.20W |
| Voltage Range | 8 ~ 15VDC |
| Static Pressure | - |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 80000 Hrs @ 40°C |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Size / Dimension | Square - 92mm L x 92mm H |
| Ingress Protection | - |
| Current Rating (Amps) | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
