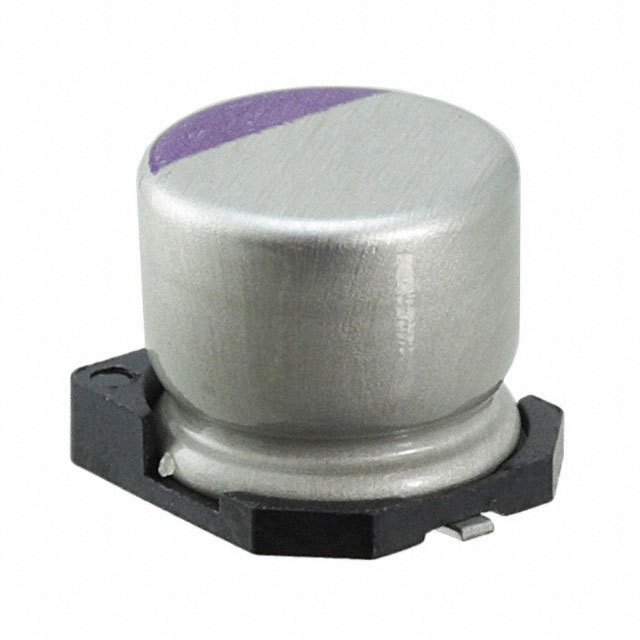

Image is for reference only , See Product Specifications
870135374003
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | 870135374003 |
| Description: | CAP ALUM POLY 220UF 20% 16V T/H |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Polymer |
| Series | WCAP-PTHT |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 220µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 280mA @ 120Hz |
| Ripple Current @ High Frequency | 5.6A @ 100kHz |
| ESR (Equivalent Series Resistance) | 10mOhm |
In Stock 472 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.18 | $1.16 | $1.13 |
