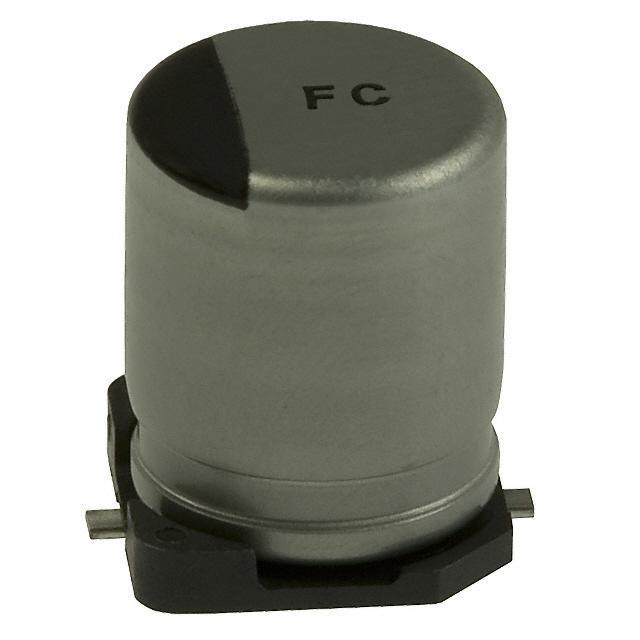

Image is for reference only , See Product Specifications
860240273003
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 860240273003 |
| Description: | CAP 100 UF 20% 10 V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | WCAP-AT1H |
| Ratings | - |
| Packaging | Tape & Box (TB) |
| Tolerance | ±20% |
| Capacitance | 100µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.098" (2.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 10V |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 95mA @ 120Hz |
| Ripple Current @ High Frequency | 190mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.09 | $0.09 | $0.09 |
