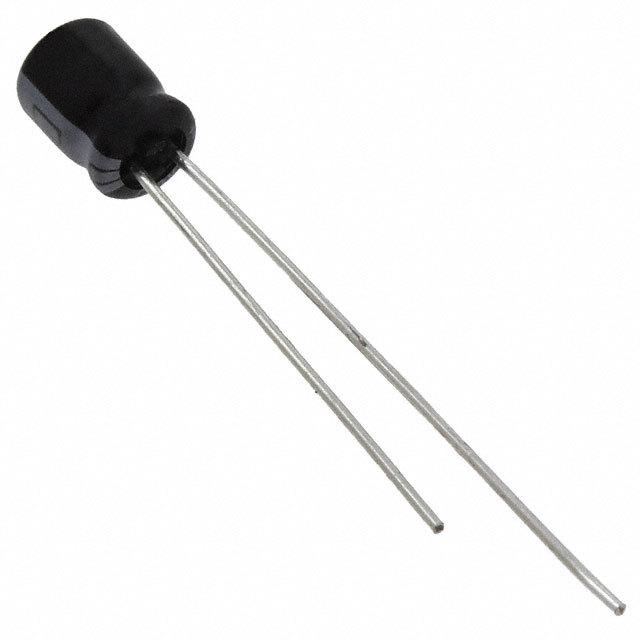

Image is for reference only , See Product Specifications
860020372005
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 860020372005 |
| Description: | CAP ALUM 68UF 20% 16V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | WCAP-ATG5 |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 68µF |
| Part Status | Discontinued at Digi-Key |
| Applications | General Purpose |
| Lead Spacing | 0.079" (2.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 105mA @ 120Hz |
| Ripple Current @ High Frequency | 160.65mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
