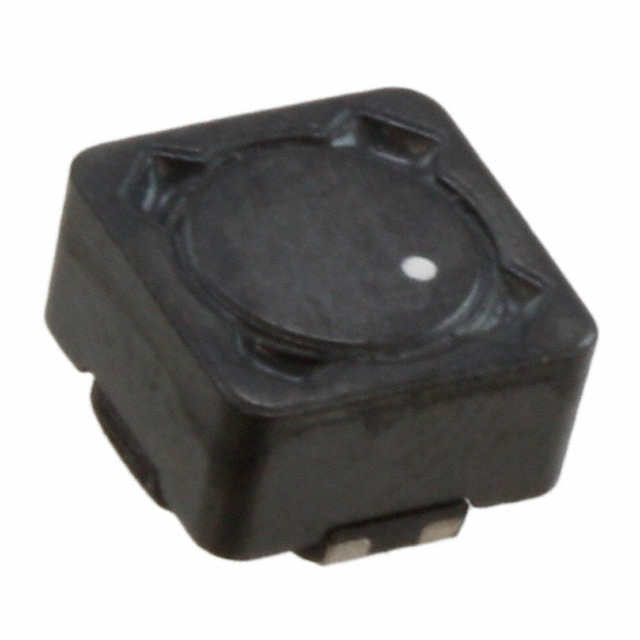

Image is for reference only , See Product Specifications
744871004
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Arrays, Signal Transformers |
| Data Sheet: | 744871004 |
| Description: | INDUCT ARRAY 2 COIL 4.7UH SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Arrays, Signal Transformers |
| Height | 0.256" (6.50mm) |
| Series | WE-DD |
| Ratings | - |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 1.5A |
| Current Rating - Parallel | 3A |
| Current Saturation - Series | 4A |
| DC Resistance (DCR) - Series | - |
| Current Saturation - Parallel | 8A |
| DC Resistance (DCR) - Parallel | 28mOhm Max |
| Inductance - Connected In Series | 18.8µH |
| Inductance - Connected In Parallel | 4.7µH |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.64 | $1.61 | $1.58 |
