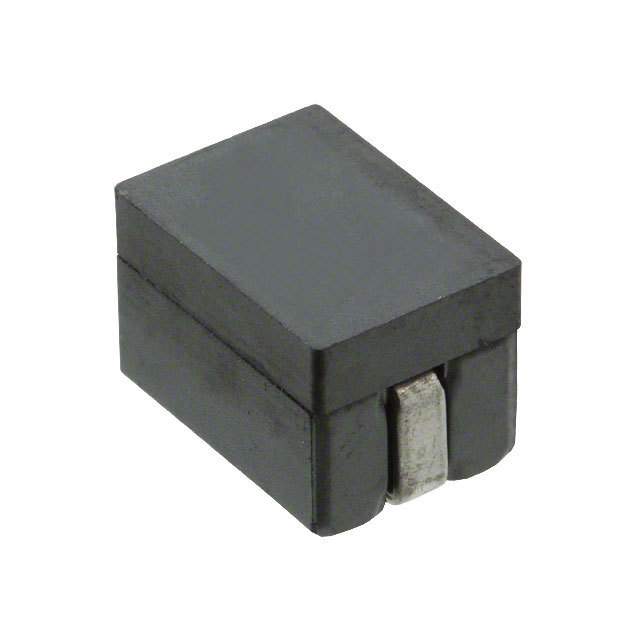

Image is for reference only , See Product Specifications
744787082
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 744787082 |
| Description: | FIXED IND 8.2UH 2.7A 39 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | WE-PD2SR |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 8.2µH |
| Part Status | Discontinued at Digi-Key |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Material - Core | Ferrite |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| DC Resistance (DCR) | 39mOhm Max |
| Current - Saturation | 2.8A |
| Current Rating (Amps) | 2.7A |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 28MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
