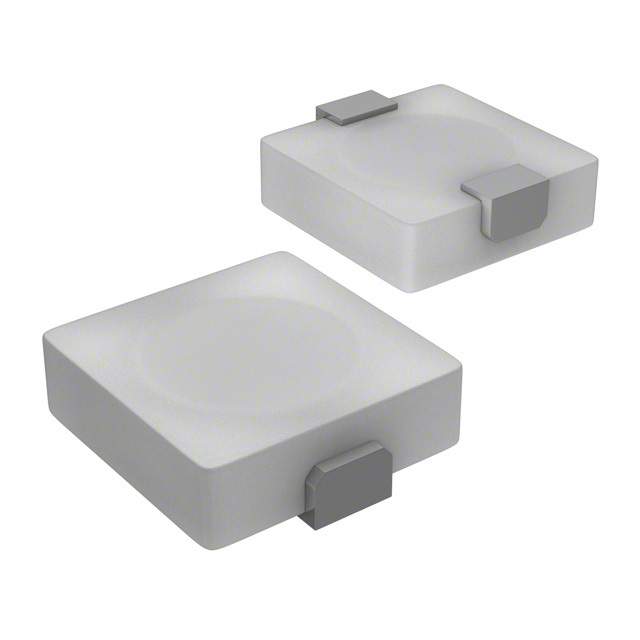

Image is for reference only , See Product Specifications
74451247
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 74451247 |
| Description: | WE-PD3 SMT SHIELDED POWER INDUCT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | WE-PD3 |
| Ratings | - |
| Features | - |
| Q @ Freq | - |
| Packaging | Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 470µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| DC Resistance (DCR) | 1.8Ohm Max |
| Current - Saturation | 20mA |
| Current Rating (Amps) | 190mA |
| Height - Seated (Max) | 0.115" (2.92mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 3MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 7 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.70 | $1.67 | $1.63 |
