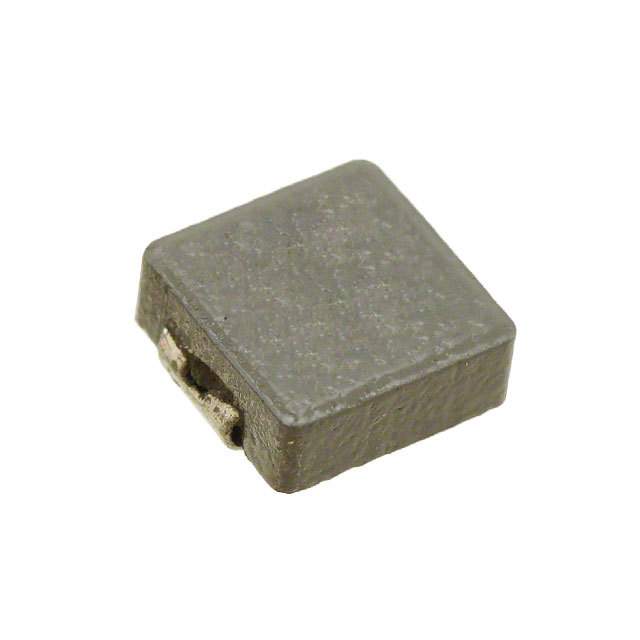

Image is for reference only , See Product Specifications
744373560033
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 744373560033 |
| Description: | FIXED IND 330NH 16A 2.57 MOHM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Fixed Inductors |
| Type | Molded |
| Series | WE-LHMI |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 330nH |
| Part Status | Discontinued at Digi-Key |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Iron Powder |
| Size / Dimension | 0.362" L x 0.335" W (9.20mm x 8.50mm) |
| DC Resistance (DCR) | 2.57mOhm Max |
| Current - Saturation | 39A |
| Current Rating (Amps) | 16A |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 8030 |
| Frequency - Self Resonant | 95MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
