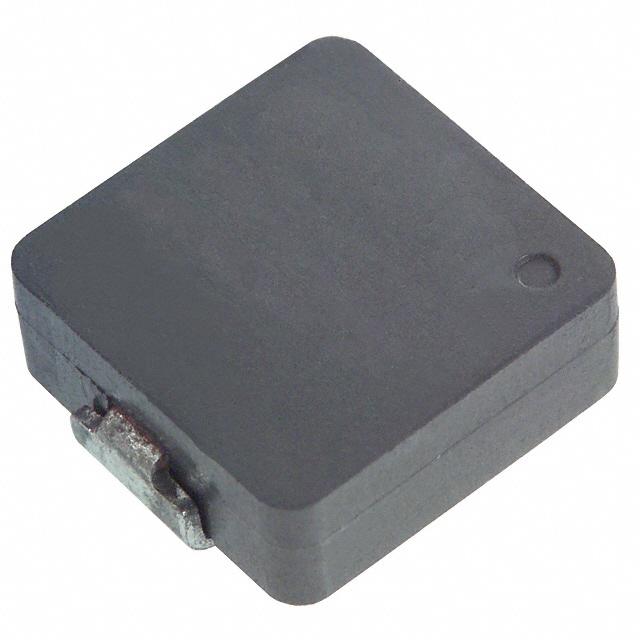

Image is for reference only , See Product Specifications
7443551470
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 7443551470 |
| Description: | FIXED IND 4.7UH 13A 7 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | WE-HCI |
| Ratings | AEC-Q200 |
| Q @ Freq | - |
| Packaging | Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 4.7µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | - |
| Size / Dimension | 0.512" L x 0.504" W (13.00mm x 12.80mm) |
| DC Resistance (DCR) | 7mOhm |
| Current - Saturation | 15A |
| Current Rating (Amps) | 13A |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Operating Temperature | -40°C ~ 155°C |
| Supplier Device Package | 1365 |
| Frequency - Self Resonant | 30MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 1138 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $3.27 | $3.20 | $3.14 |
