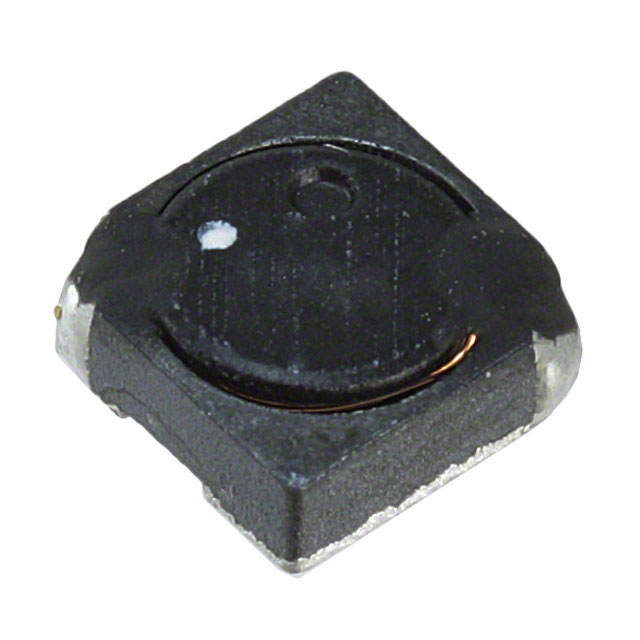

Image is for reference only , See Product Specifications
74408943820
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 74408943820 |
| Description: | FIXED IND 82UH 580MA 750 MOHM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | WE-SPC |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 82µH |
| Part Status | Discontinued at Digi-Key |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| DC Resistance (DCR) | 750mOhm Max |
| Current - Saturation | 800mA |
| Current Rating (Amps) | 580mA |
| Height - Seated (Max) | 0.161" (4.10mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 8MHz |
| Inductance Frequency - Test | 100kHz |
