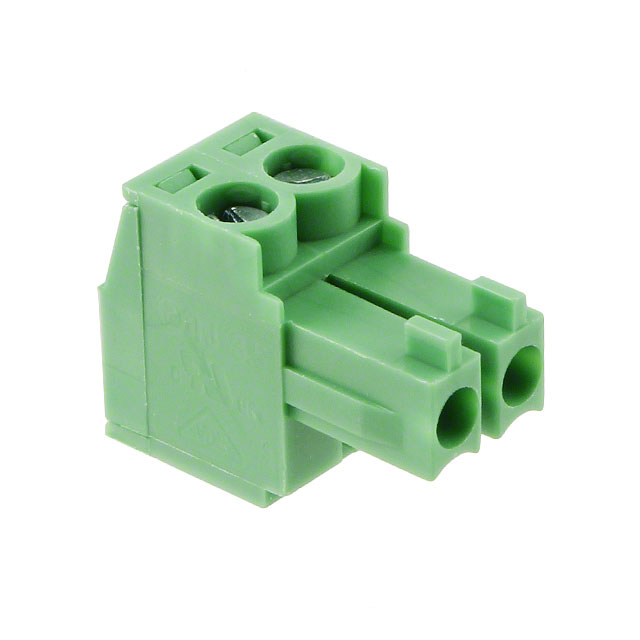

Image is for reference only , See Product Specifications
691351400002
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | 691351400002 |
| Description: | TERM BLOCK PLUG 2POS STR 7.62MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.300" (7.62mm) |
| Series | WR-TBL Series 3514 |
| Features | Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Screw Size | M3 |
| Part Status | Active |
| Current - UL | 20A |
| Voltage - UL | 300V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | - |
| Number of Levels | 1 |
| Insulation Height | 0.594" (15.09mm) |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Wire Strip Length | 7-8mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Dielectric Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Contact Mating Finish | - |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm² | 0.2-3mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 1 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.24 | $1.22 | $1.19 |
