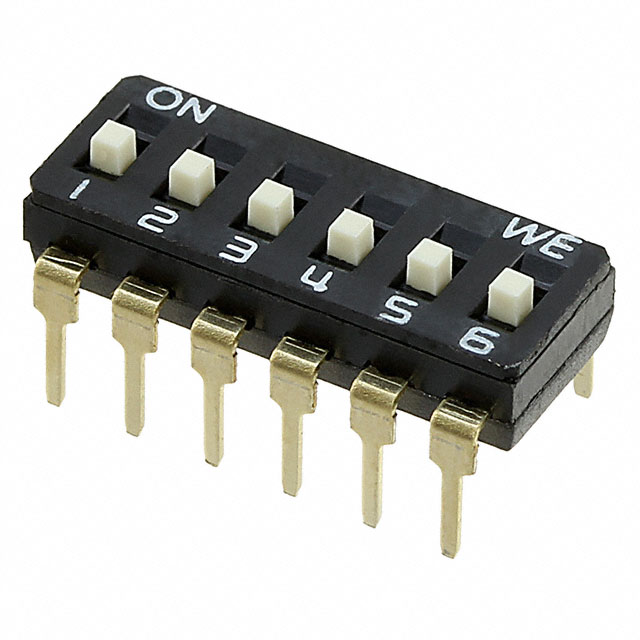

Image is for reference only , See Product Specifications
418127160908
| Manufacturers: | Wurth Electronics Inc. |
|---|---|
| Product Category: | DIP Switches |
| Data Sheet: | 418127160908 |
| Description: | SWITCH SLIDE DIP SPST 25MA 24V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Wurth Electronics Inc. |
| Product Category | DIP Switches |
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.817" (20.76mm) |
| Series | WS-DITV |
| Circuit | SPST |
| Features | Tape Seal |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Active |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 5,000 Cycles |
| Contact Material | - |
| Termination Style | PC Pin |
| Height Above Board | 0.146" (3.70mm) |
| Number of Positions | 8 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -40°C ~ 85°C |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.00 | $1.96 | $1.92 |
