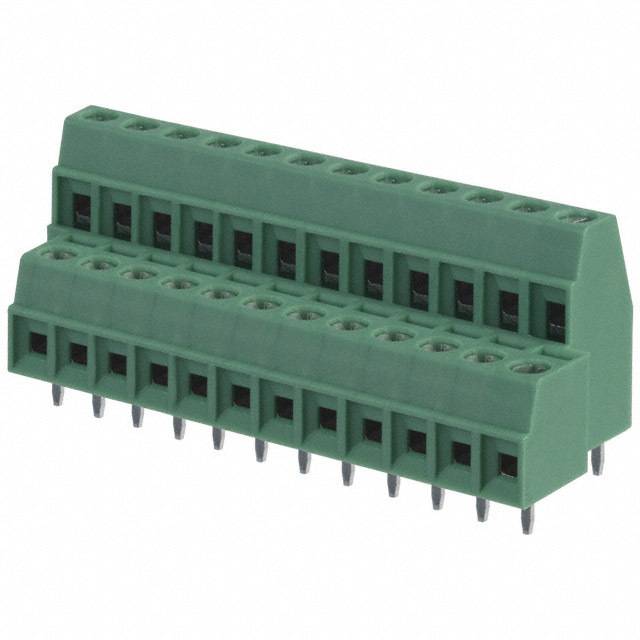

Image is for reference only , See Product Specifications
996776
| Manufacturers: | Weidmuller |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | 996776 |
| Description: | TERM BLK 10P SIDE ENT 3.5MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Weidmuller |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Black |
| Pitch | 0.138" (3.50mm) |
| Series | Omnimate LM |
| Current | 10A |
| Voltage | 300V |
| Features | - |
| Packaging | Bulk |
| Wire Gauge | 14-22 AWG |
| Part Status | Active |
| Screw Thread | M2 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) |
| Number of Levels | 1 |
| Wire Termination | Screw - Clamping Yoke, Tension Sleeve |
| Mating Orientation | Horizontal with Board |
| Dielectric Material | Polyamide (PA66), Nylon 6/6 |
| Positions Per Level | 10 |
| Operating Temperature | -20°C ~ 100°C |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Contact Material - Plating | Copper Tin Alloy - Tin Plated |
In Stock 86 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.48 | $7.33 | $7.18 |
