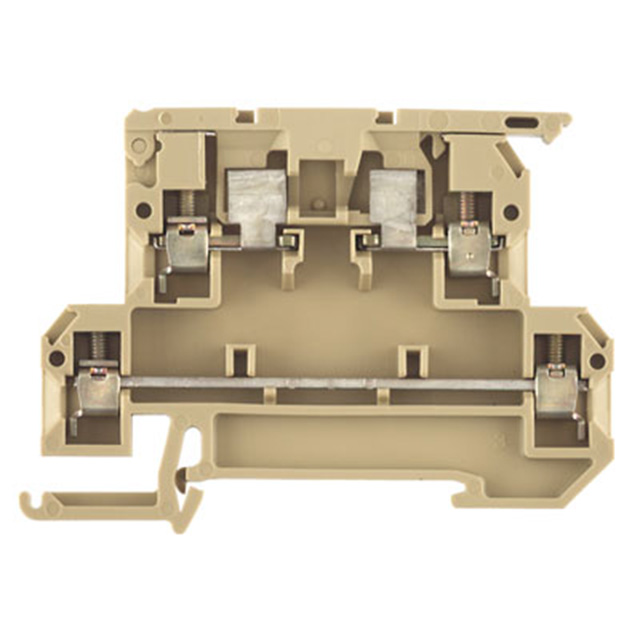

Image is for reference only , See Product Specifications
2562010000
| Manufacturers: | Weidmuller |
|---|---|
| Product Category: | Terminal Blocks - Din Rail, Channel |
| Data Sheet: | 2562010000 |
| Description: | W-SERIES, FUSE TERMINAL, RATED C |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Weidmuller |
| Product Category | Terminal Blocks - Din Rail, Channel |
| Type | Disconnect |
| Color | Blue |
| Series | W |
| Features | LED |
| Fuse Type | 5mm x 20mm |
| Part Status | Active |
| Current - UL | 10A |
| Voltage - UL | 300V |
| Current - IEC | 6.3A |
| Voltage - IEC | 36V |
| Disconnect Type | Fuse, Removable Plug |
| Number of Levels | 1 |
| Stripping Length | 13mm |
| Terminal - Width | 6.1mm |
| Termination Style | Screw |
| Number of Positions | 2 |
| Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 10-22 AWG |
| Wire Gauge or Range - mm² | 0.5-6mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 50 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $13.29 | $13.02 | $12.76 |
