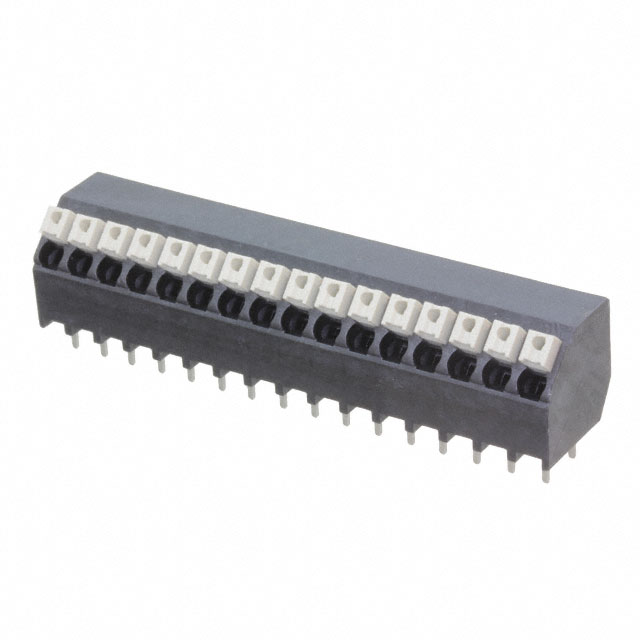

Image is for reference only , See Product Specifications
1884500000
| Manufacturers: | Weidmuller |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | 1884500000 |
| Description: | TERM BLOCK 14POS 45DEG 5MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Weidmuller |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Series | Omnimate LSF-SMT |
| Current | 12A |
| Voltage | 300V |
| Features | - |
| Packaging | Tube |
| Wire Gauge | 16-24 AWG |
| Part Status | Active |
| Screw Thread | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Number of Levels | 1 |
| Wire Termination | Screwless - Push Button Clamp |
| Mating Orientation | 45° (135°) Angle with Board |
| Dielectric Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Positions Per Level | 14 |
| Operating Temperature | -50°C ~ 240°C |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Contact Material - Plating | Copper Alloy - Tin Plated |
In Stock 80 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.69 | $6.56 | $6.43 |
