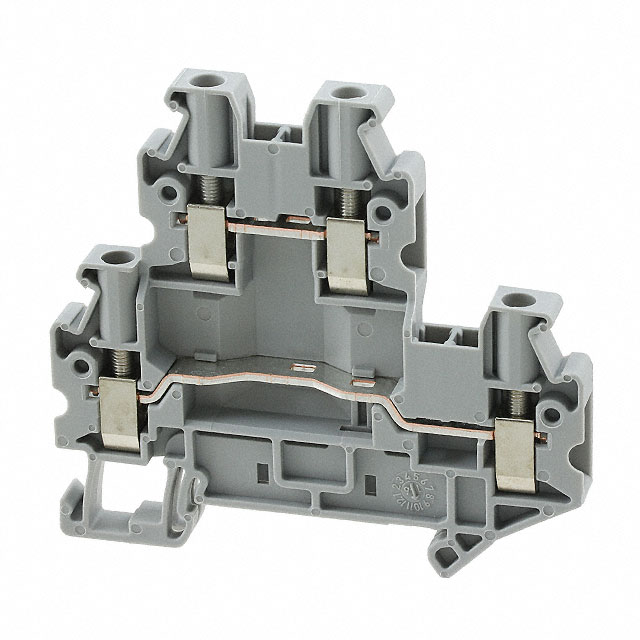

Image is for reference only , See Product Specifications
1771420000
| Manufacturers: | Weidmuller |
|---|---|
| Product Category: | Terminal Blocks - Din Rail, Channel |
| Data Sheet: | 1771420000 |
| Description: | CONN TERM BLK FEED THRU 8-22 AWG |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Weidmuller |
| Product Category | Terminal Blocks - Din Rail, Channel |
| Type | Feed Through |
| Color | Blue |
| Series | Z |
| Features | - |
| Fuse Type | - |
| Part Status | Active |
| Current - UL | 45A |
| Voltage - UL | 600V |
| Current - IEC | 41A |
| Voltage - IEC | 800V |
| Disconnect Type | - |
| Number of Levels | 1 |
| Stripping Length | 12mm |
| Terminal - Width | 8.1mm |
| Termination Style | Push In, Spring |
| Number of Positions | 3 |
| Material - Insulation | Thermoplastic, Wemid |
| Wire Gauge or Range - AWG | 8-22 AWG |
| Wire Gauge or Range - mm² | 0.5-10mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 100 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.92 | $5.80 | $5.69 |
