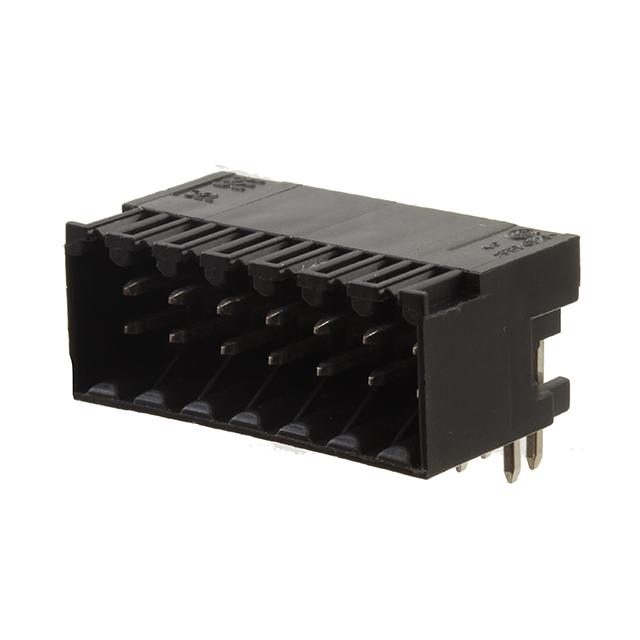

Image is for reference only , See Product Specifications
1601200000
| Manufacturers: | Weidmuller |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | 1601200000 |
| Description: | TERM BLOCK PLUG 13POS STR 5.08MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Weidmuller |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Plug Housing for Female Sockets |
| Color | Orange |
| Pitch | 0.200" (5.08mm) |
| Series | Unimate BLA |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 10A |
| Voltage - UL | 300V |
| Current - IEC | 14A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 250V |
| Torque - Screw | - |
| Plug Wire Entry | 180° |
| Contact Material | - |
| Number of Levels | 1 |
| Insulation Height | 0.300" (7.62mm) |
| Termination Style | Crimp |
| Wire Strip Length | - |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 13 |
| Positions Per Level | 13 |
| Contact Mating Finish | - |
| Operating Temperature | -20°C ~ 120°C |
| Wire Gauge or Range - AWG | 14-22 AWG |
| Wire Gauge or Range - mm² | 2.5mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 142 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.19 | $5.09 | $4.98 |
