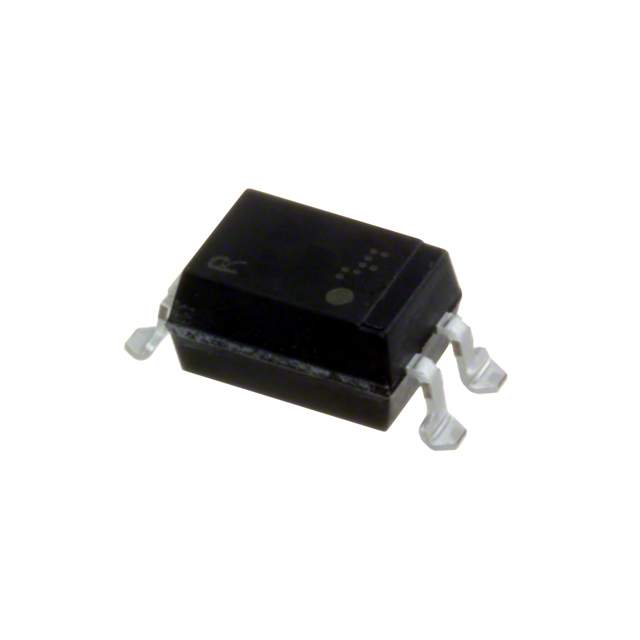

Image is for reference only , See Product Specifications
TCET1105G
| Manufacturers: | Vishay / Semiconductor - Opto Division |
|---|---|
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Data Sheet: | TCET1105G |
| Description: | OPTOISOLATOR 5KV TRANS 4DIP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Series | - |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Transistor |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.400", 10.16mm) |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -40°C ~ 100°C |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Voltage - Output (Max) | 70V |
| Supplier Device Package | 4-DIP |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 150% @ 5mA |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Current - DC Forward (If) (Max) | 60mA |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.16 | $0.16 | $0.15 |
