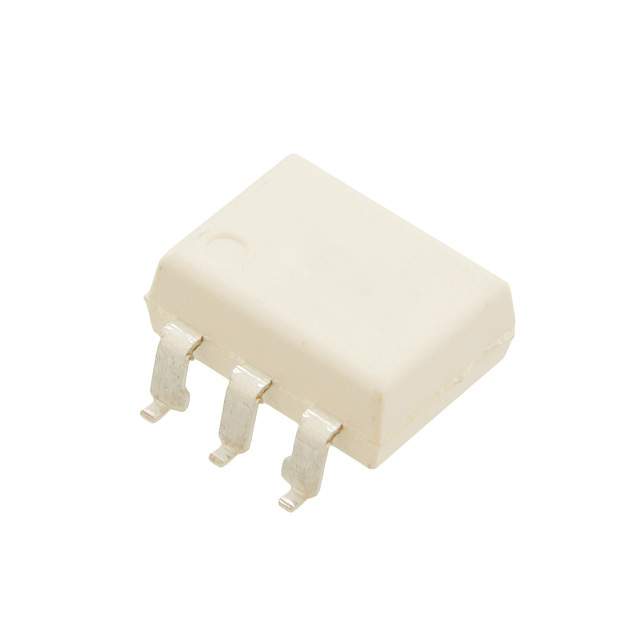

Image is for reference only , See Product Specifications
IL4208-X009T
| Manufacturers: | Vishay / Semiconductor - Opto Division |
|---|---|
| Product Category: | Optoisolators - Triac, SCR Output |
| Data Sheet: | IL4208-X009T |
| Description: | OPTOISOLATOR 5.3KV TRIAC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Product Category | Optoisolators - Triac, SCR Output |
| Series | - |
| Approvals | CQC, CSA, cUR, UR |
| Packaging | Digi-Reel® |
| Output Type | Triac |
| Part Status | Active |
| Turn On Time | 35µs |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD |
| Number of Channels | 1 |
| Static dV/dt (Min) | 10kV/µs |
| Current - Hold (Ih) | 500µA |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 800V |
| Operating Temperature | -55°C ~ 100°C |
| Zero Crossing Circuit | No |
| Supplier Device Package | 6-SMD |
| Voltage - Forward (Vf) (Typ) | 1.16V |
| Current - DC Forward (If) (Max) | 60mA |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Current - On State (It (RMS)) (Max) | 300mA |
