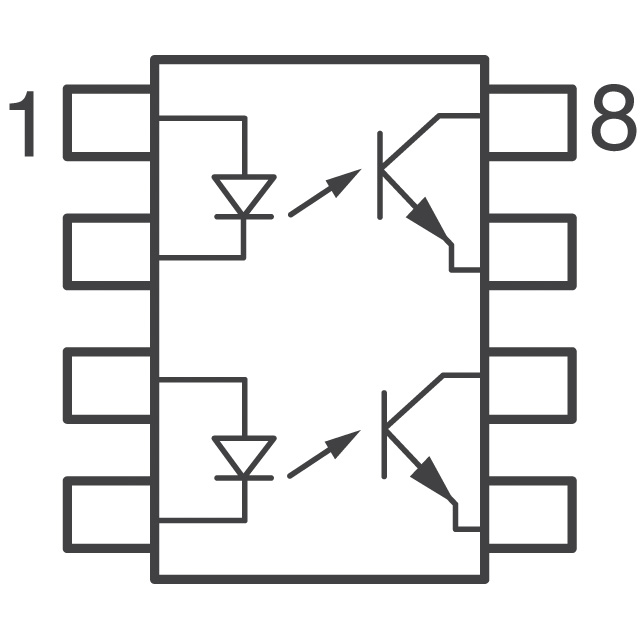

Image is for reference only , See Product Specifications
6N1135-X009T
| Manufacturers: | Vishay / Semiconductor - Opto Division |
|---|---|
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Data Sheet: | 6N1135-X009T |
| Description: | OPTOISO 5.3KV TRANS W/BASE 8SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Input Type | DC |
| Output Type | Transistor with Base |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Base Part Number | 6N1135 |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Rise / Fall Time (Typ) | - |
| Voltage - Output (Max) | 15V |
| Supplier Device Package | 8-SMD |
| Current - Output / Channel | 8mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 7% @ 16mA |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Turn On / Turn Off Time (Typ) | 300ns, 300ns |
| Current - DC Forward (If) (Max) | 25mA |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
