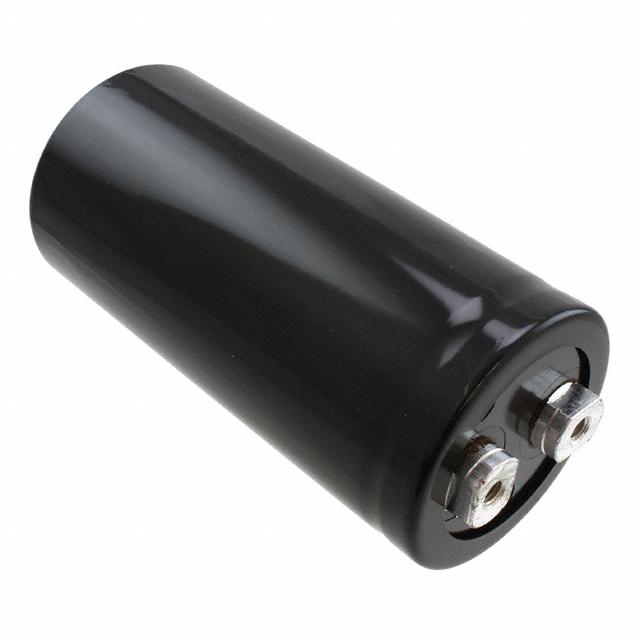

Image is for reference only , See Product Specifications
MAL229956122E3
| Manufacturers: | Vishay BC Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | MAL229956122E3 |
| Description: | CAP ALUM 1200UF 20% 400V SNAP 4L |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay BC Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | 299 PHL-4TSI |
| Ratings | - |
| Impedance | 80 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1200µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.886" (22.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Voltage - Rated | 400V |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 4.34A @ 100Hz |
| Ripple Current @ High Frequency | 6.51A @ 10kHz |
| ESR (Equivalent Series Resistance) | 110mOhm @ 100Hz |
In Stock 476 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $31.16 | $30.54 | $29.93 |
