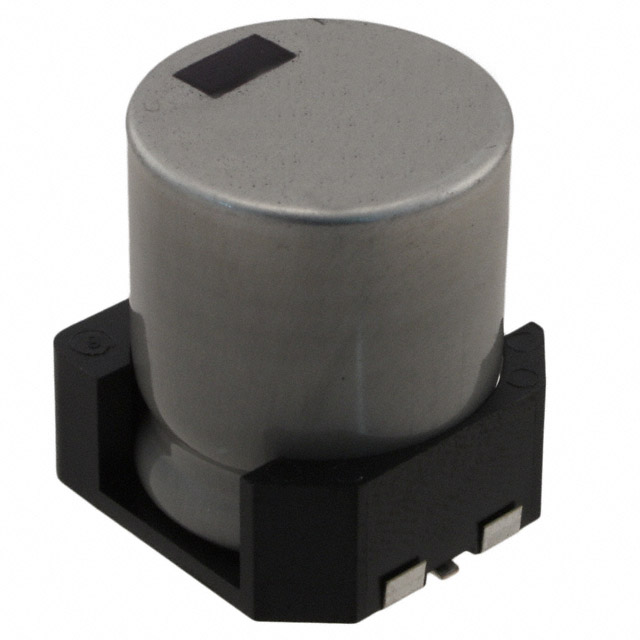

Image is for reference only , See Product Specifications
MAL216099605E3
| Manufacturers: | Vishay BC Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | MAL216099605E3 |
| Description: | CAP ALUM 1500UF 20% 25V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay BC Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | 160 CLA |
| Ratings | AEC-Q200 |
| Impedance | 35 mOhms |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 1500µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 25V |
| Lifetime @ Temp. | 2000 Hrs @ 150°C |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Operating Temperature | -55°C ~ 150°C |
| Surface Mount Land Size | 0.654" L x 0.654" W (16.60mm x 16.60mm) |
| Ripple Current @ High Frequency | 1.05A @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 390 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.34 | $4.25 | $4.17 |
Request Quote
