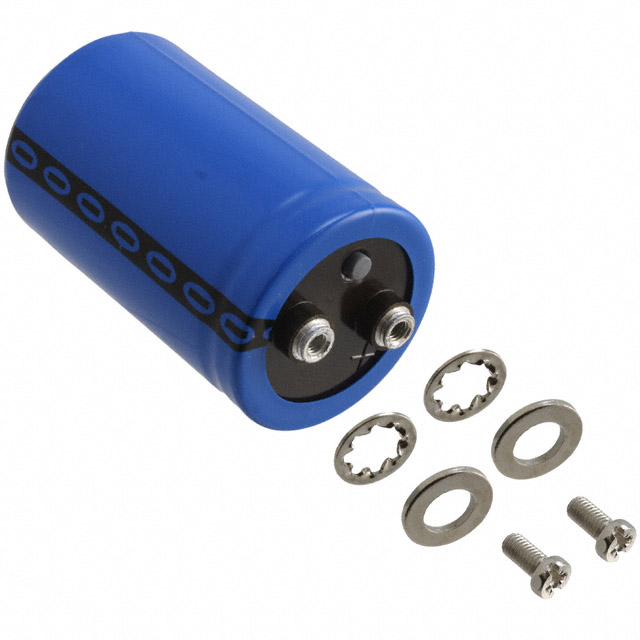

Image is for reference only , See Product Specifications
MAL210119153E3
| Manufacturers: | Vishay BC Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | MAL210119153E3 |
| Description: | CAP ALUM 15000UF 20% 100V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Vishay BC Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | 101 PHR-ST |
| Ratings | - |
| Impedance | 12 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 15000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.874" (22.20mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 100V |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ High Frequency | 15.99A @ 10kHz |
| ESR (Equivalent Series Resistance) | 16mOhm @ 100Hz |
In Stock 140 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $52.02 | $50.98 | $49.96 |
