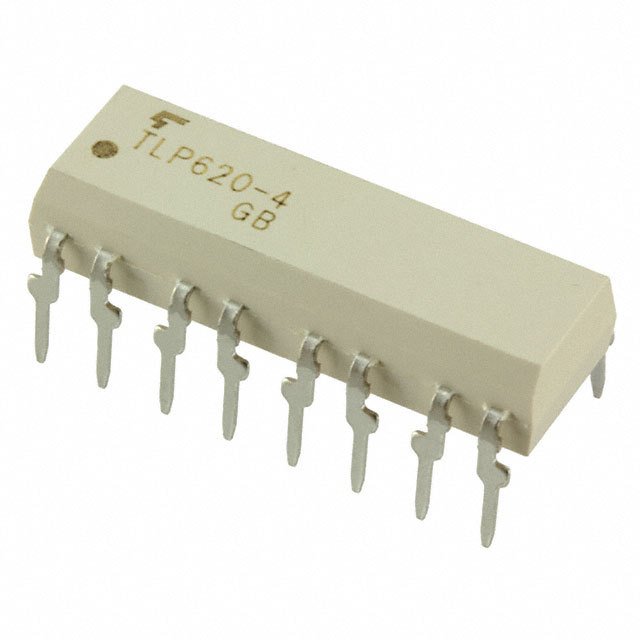

Image is for reference only , See Product Specifications
TLP627-4F
| Manufacturers: | Toshiba Semiconductor and Storage |
|---|---|
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Data Sheet: | TLP627-4F |
| Description: | OPTOISO 5KV 4CH DARLINGTON 16DIP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Series | - |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Darlington |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Number of Channels | 4 |
| Voltage - Isolation | 5000Vrms |
| Vce Saturation (Max) | 1.2V |
| Operating Temperature | -55°C ~ 100°C |
| Rise / Fall Time (Typ) | 40µs, 15µs |
| Voltage - Output (Max) | 300V |
| Supplier Device Package | 16-DIP |
| Current - Output / Channel | 150mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 1000% @ 1mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Turn On / Turn Off Time (Typ) | 50µs, 15µs |
| Current - DC Forward (If) (Max) | 50mA |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
